    Product >> Mimaki >> UJF-3042 MkII EX

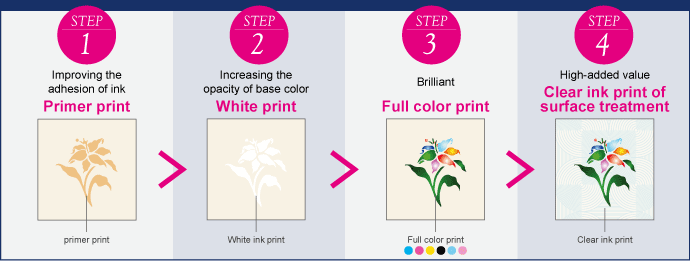

    Just one print setting can complete four steps of high-added value creation with primer application
    to clear surface treatment !



    "UJF-3042MkII EX" is the EXTRA model of " UJF-3042MkII", of which high productivity, excellent machine performance and beauty of print are reserved to upgrade the configuration from the 3 print heads to 4.



    Supports A3 size & 153 mm height & 8 color
    • The 4 print heads configuration enables an additional attachment of white, clear and primer ink with the process color (CMYK) of base as 8 bottles of ink can be mounted.

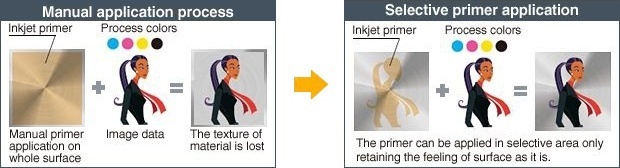

     • A current process of manual apply of primer and an extra job of surface treatment will be finished by one print setting of this new printer.

    • A compact but great UV-LED inkjet printer of A3 size,
    "UJF-3042MkII EX" realizes the high value added print.





    Outstanding Feature

    - UJF-3042MkII EX enables an additional attachment of white, clear and primer ink with the full color (CMYK).

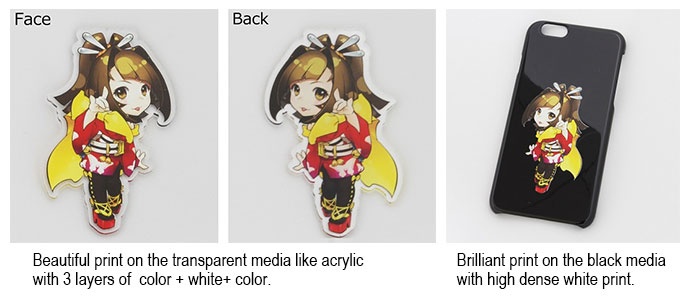

    - White ink making more effective expression of full color print


    - Inkjet primer improving the ink adhesion

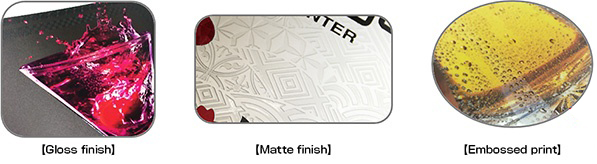

    - Clear ink print to represent the texture and to enhance design


    - High-performance UV-curable inks expand the range of applications
    - Maintenance functions ensure worry-free operation
    - The optional items of UJF-3042MkII will be equipped with UJF-3042MkII EX as the standard accessories!
    - The [Status Indication Lamp] for check of printer status
    - The [Vacuum table] to fix a print substrate on the table
    - The [Emergency switch] to stop the machine operation in an emergency
    - The [NCU (Nozzle Check Unit)] of auto-detecting nozzle-clogging
